Digital Scale and DRO System

• Linear Scales
  •

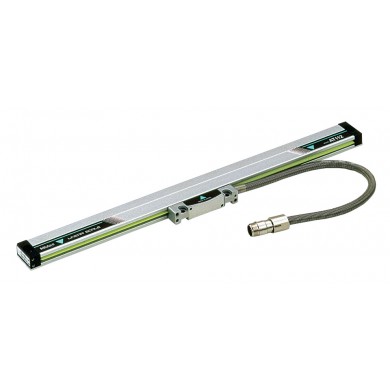

    Extra Slim Linear Scale 70mm / 2.5"

    A super slim spar-type Mitutoyo linear scale for use in applications where installation space is at a premium.








    Extra Slim Linear Scale 120mm / 4.5"

    A super slim spar-type Mitutoyo linear scale for use in applications where installation space is at a premium.








    ABSOLUTE Linear Scale 200mm / 8"

    A spar-type linear scale that uses Mitutoyo’s ABSOLUTE electromagnetic induction system to achieve the extreme environmental resistance rating of IP67. The absolute position of the read head is always detected at power-up with no zero- or reference-point setting required. An armoured signal cable connects the read head to a display unit.






    Extra Slim Linear Scale 220mm / 8.5"

    A super slim spar-type Mitutoyo linear scale for use in applications where installation space is at a premium.








    Extra Slim Linear Scale 270mm / 10.5"

    A super slim spar-type Mitutoyo linear scale for use in applications where installation space is at a premium.








    ABSOLUTE Linear Scale 300mm / 12"

    A spar-type linear scale that uses Mitutoyo’s ABSOLUTE electromagnetic induction system to achieve the extreme environmental resistance rating of IP67. The absolute position of the read head is always detected at power-up with no zero- or reference-point setting required. An armoured signal cable connects the read head to a display unit.






    Slim Linear Scale 600mm / 24"

    A slim, economy spar-type Mitutoyo linear scale suitable for milling machines, XY tables, jigs and similar applications. Dimensionally compatible with the earlier AT111 and AT115 scales.






• Digital Scale Units
  •


    ABSOLUTE Digimatic Scale 100mm / 4"

    A Mitutoyo ABSOLUTE Digimatic scale unit with vertically oriented display suitable for mounting on any equipment that needs the position of a moving element indicated. A zero reference point can be defined easily so that, once set, the unit displays the position of the slider whenever turned on rather than “0.00”, as with standard models. The display can also be zeroed at any slider position along the beam for incremental comparisons. Switching between modes is accomplished with just one button press. Racks, pinions or glass scales are not used – the Digimatic scale is safely embedded in the hardened stainless steel blade. All units are equipped with mounting brackets located at each end of the scale. SPC data output.



    ABSOLUTE Digimatic Coolant Proof Scale 100mm / 4"

    A coolant-proof Mitutoyo ABSOLUTE Digimatic scale unit with horizontally oriented display suitable for mounting on any equipment that needs the position of a moving element indicated and that may be subject to splashing with water or coolant. A zero reference point can be defined easily so that, once set, the unit displays the position of the slider whenever turned on rather than “0.00”, as with standard models. The display can also be zeroed at any slider position along the beam for incremental comparisons. Switching between modes is accomplished with just one button press. Racks, pinions or glass scales are not used – the electromagnetic induction type Digimatic scale is safely embedded in the hardened stainless steel blade. All units are equipped with mounting brackets located at each end of the scale. SPC data output.



    ABSOLUTE Digimatic Coolant Proof Scale 150mm / 6"

    A coolant-proof Mitutoyo ABSOLUTE Digimatic scale unit with horizontally oriented display suitable for mounting on any equipment that needs the position of a moving element indicated and that may be subject to splashing with water or coolant. A zero reference point can be defined easily so that, once set, the unit displays the position of the slider whenever turned on rather than “0.00”, as with standard models. The display can also be zeroed at any slider position along the beam for incremental comparisons. Switching between modes is accomplished with just one button press. Racks, pinions or glass scales are not used – the electromagnetic induction type Digimatic scale is safely embedded in the hardened stainless steel blade. All units are equipped with mounting brackets located at each end of the scale. SPC data output.



    ABSOLUTE Digimatic Coolant Proof Scale 200mm / 8"

    A coolant-proof Mitutoyo ABSOLUTE Digimatic scale unit with horizontally oriented display suitable for mounting on any equipment that needs the position of a moving element indicated and that may be subject to splashing with water or coolant. A zero reference point can be defined easily so that, once set, the unit displays the position of the slider whenever turned on rather than “0.00”, as with standard models. The display can also be zeroed at any slider position along the beam for incremental comparisons. Switching between modes is accomplished with just one button press. Racks, pinions or glass scales are not used – the electromagnetic induction type Digimatic scale is safely embedded in the hardened stainless steel blade. All units are equipped with mounting brackets located at each end of the scale. SPC data output.



    ABSOLUTE Digimatic Scale 300mm / 12"

    A multi-function Mitutoyo ABSOLUTE Digimatic scale unit with vertically oriented display suitable for mounting on any equipment that needs the position of a moving element indicated. A zero reference point can be defined easily so that, once set, the unit displays the position of the slider whenever turned on rather than “0.00”, as with standard models. The display can also be zeroed at any slider position along the beam for incremental comparisons. Switching between modes is accomplished with just one button press. Additional functionality includes display value presetting, data hold and direction switching. Racks, pinions or glass scales are not used – the Digimatic scale is safely embedded in the hardened stainless steel blade. All units are equipped with mounting brackets located at each end of the scale. SPC data output.

• Display Units
  •


    Single-Function Multi-Point Display Unit

    A low cost, Mitutoyo modular display unit with GO/NG judgement function offers a large LED display for Digimatic output measuring instruments. The bright LED readout is ideal for low-light situations or when the scale unit must be positioned where its own display cannot be viewed directly.






    KA Counter 2-Axis Display Unit

    A high performance/price ratio 1/2-axis Mitutoyo digital display with new 10-coordinate function and existing KL Counter functions. Suitable for use as a standard display or as the display for a lathe by modifying parameters. Can be used both with the existing AT100 series optical scales and the new AT715 electromagnetic induction scale.






    KA Counter 3-Axis Display Unit

    A high performance/price ratio 1/3-axis Mitutoyo digital display with new 10-coordinate function and existing KL Counter functions. Suitable for use as a standard display or as the display for a lathe by modifying parameters. Can be used both with the existing AT100 series optical scales and the new AT715 electromagnetic induction scale.
